Madho Controls

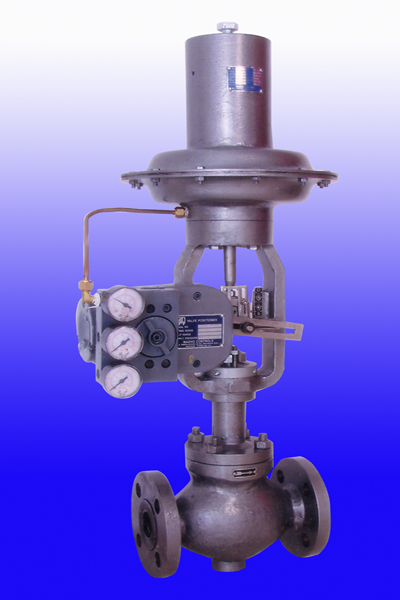

Diaphragm Control Valves - Series 10
Body Cast Carbon Steel, SS 304
Size 15mm (1/2") to 150mm (6")
Actuator Pneumatic Diaphragm type
Characteristics Linear, Equal Percentage
Temperature 2000
Air Pressure 20 psig
Line Pressure 12 Kg/cm2
End Connection Flanged End
Service Chemicals, Steam, Water, Vacuum, Air, Gas, Light Oil, Coolant

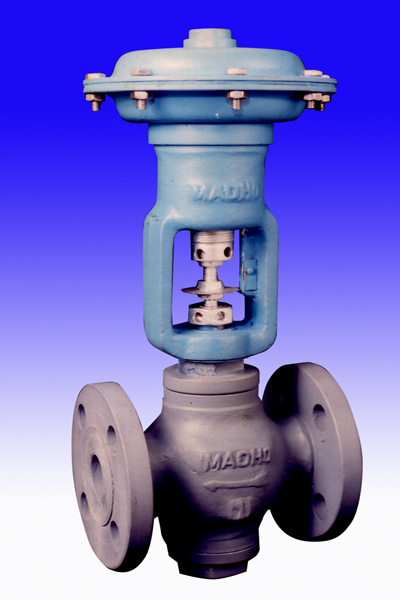

Diaphragm Control Valves - Series 100
Body Cast Carbon Steel, SS 304
Size 15mm (1/2") to 75mm (3")
Actuator Pneumatic Diaphragm type
Characteristics ON-OFF
Temperature 1500
Air Pressure 20 psig
Line Pressure 10 Kg/cm2
End Connection Flanged End
Service Steam, Water, Vacuum, Air, Gas, Light Oil, Coolant
