Madho Controls

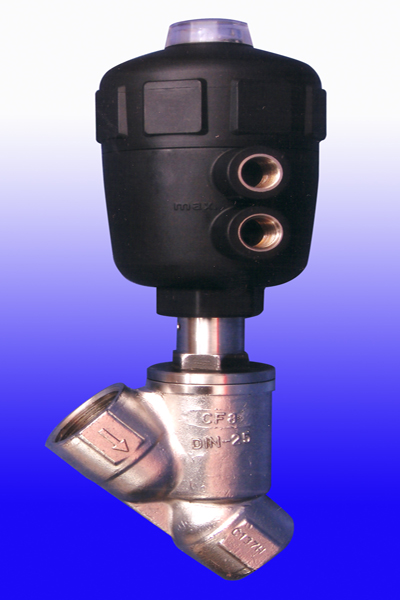

Y-Type (Angled) Valves - Series 600
Body Investment Casting CF8 (SS304) / CF 8M (SS316)
Size 15mm (1/2") to 80mm (3")
Actuator Plastic, Aluminium - Pneumatic
Temperature 1600
Air Pressure 5-6 Kg/cm2
Line Pressure 8 Kg/cm2
End Connection Screwed End (F), Flanged End
Service Steam, Water, Vacuum, Air, Gas, Light Oil, Coolant

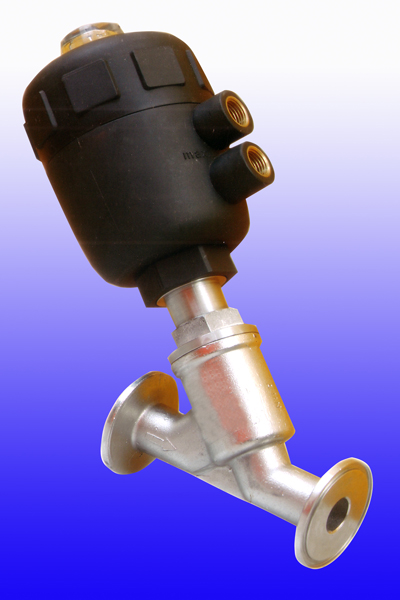

Y-Type (Angled) Valves - Series 600
Body Investment Casting CF8 (SS304) / CF 8M (SS316)
Size 15mm (1/2") to 80mm (3")
Actuator Plastic, Aluminium - Pneumatic
Temperature 1600
Air Pressure 5-6 Kg/cm2
Line Pressure 8 Kg/cm2
End Connection Tri-clover
Service Steam, Water, Vacuum, Air, Gas, Light Oil, Coolant

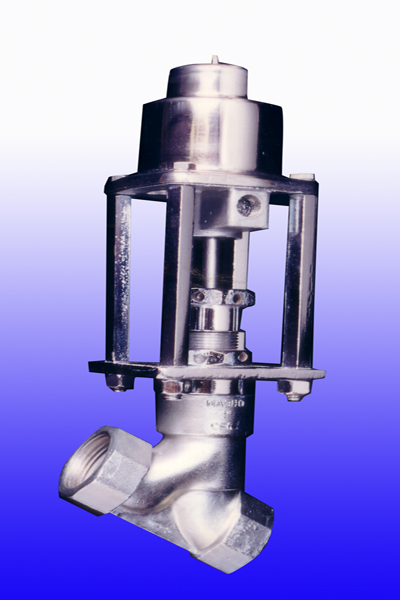

Y-Type (Angled) Valves - Series 1000
Body Investment Casting CF8 (SS304) / CF 8M (SS316)
Size 15mm (1/2") to 80mm (3")
Actuator Pressed Stainless Steel, Aluminium - Pneumatic
Temperature 1850
Air Pressure 5-6 Kg/cm2
Line Pressure 8 Kg/cm2
End Connection Screwed End (F), Flanged End
Service Steam
